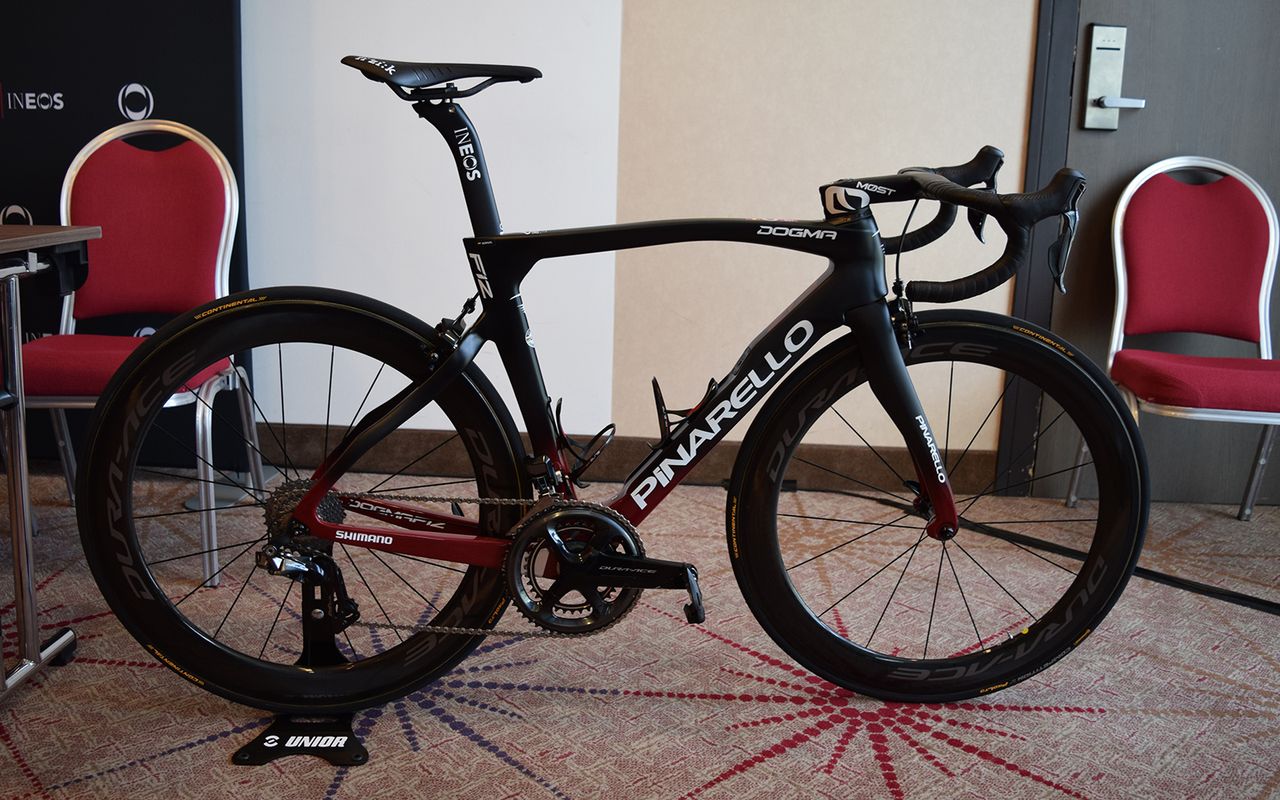

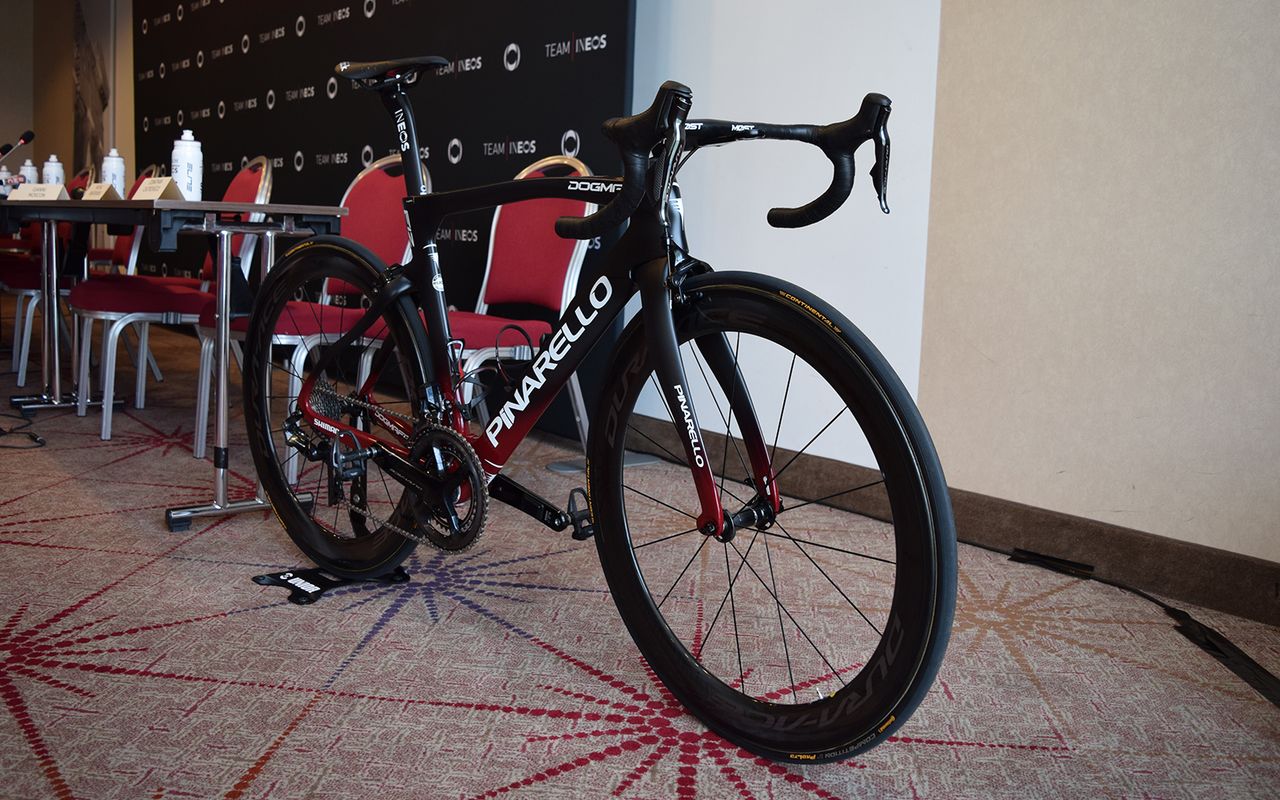

Another look at Bernal's bike(Image credit: Josh Evans)

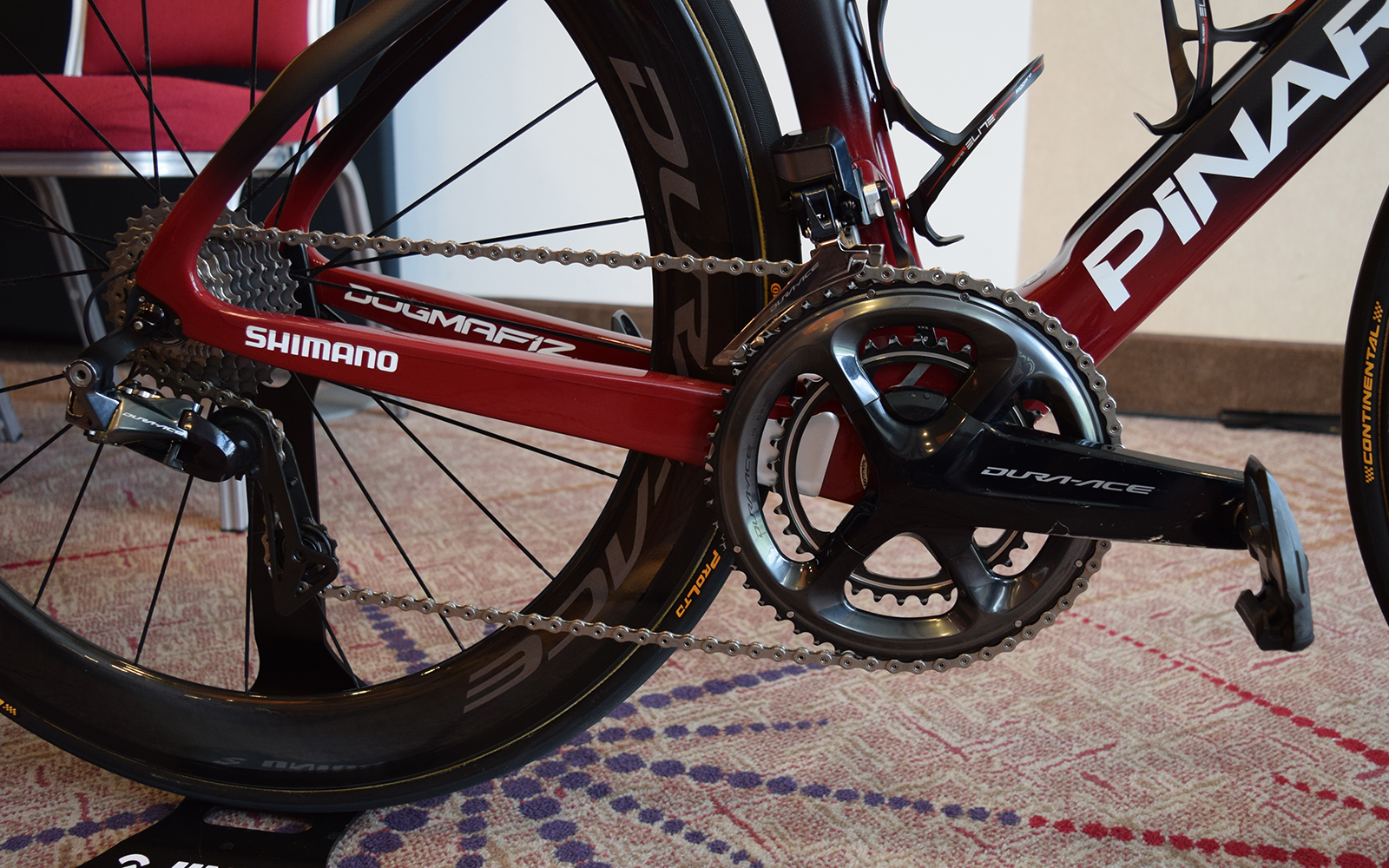

Team Ineos stuck with Shimano Dura-Ace R9150 drivetrains(Image credit: Josh Evans)

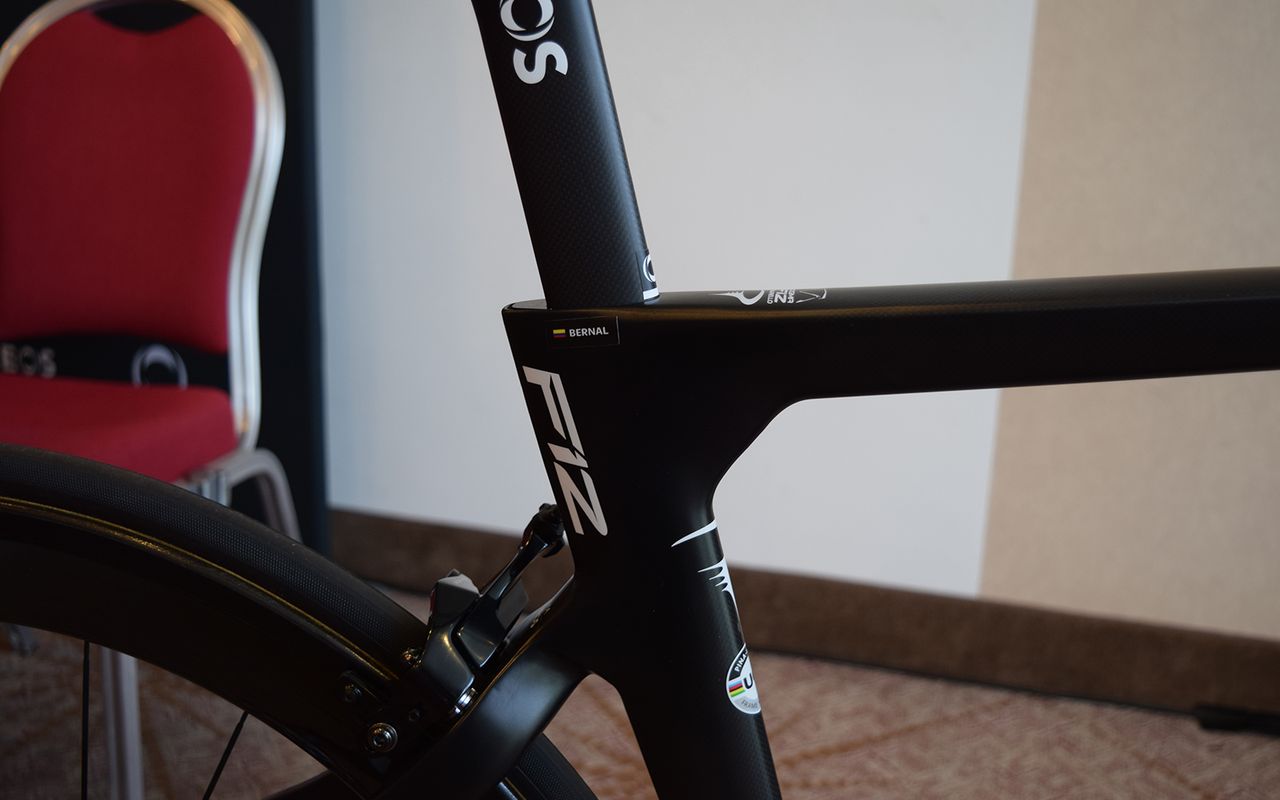

A look at the aero profile of the seat tube(Image credit: Josh Evans)

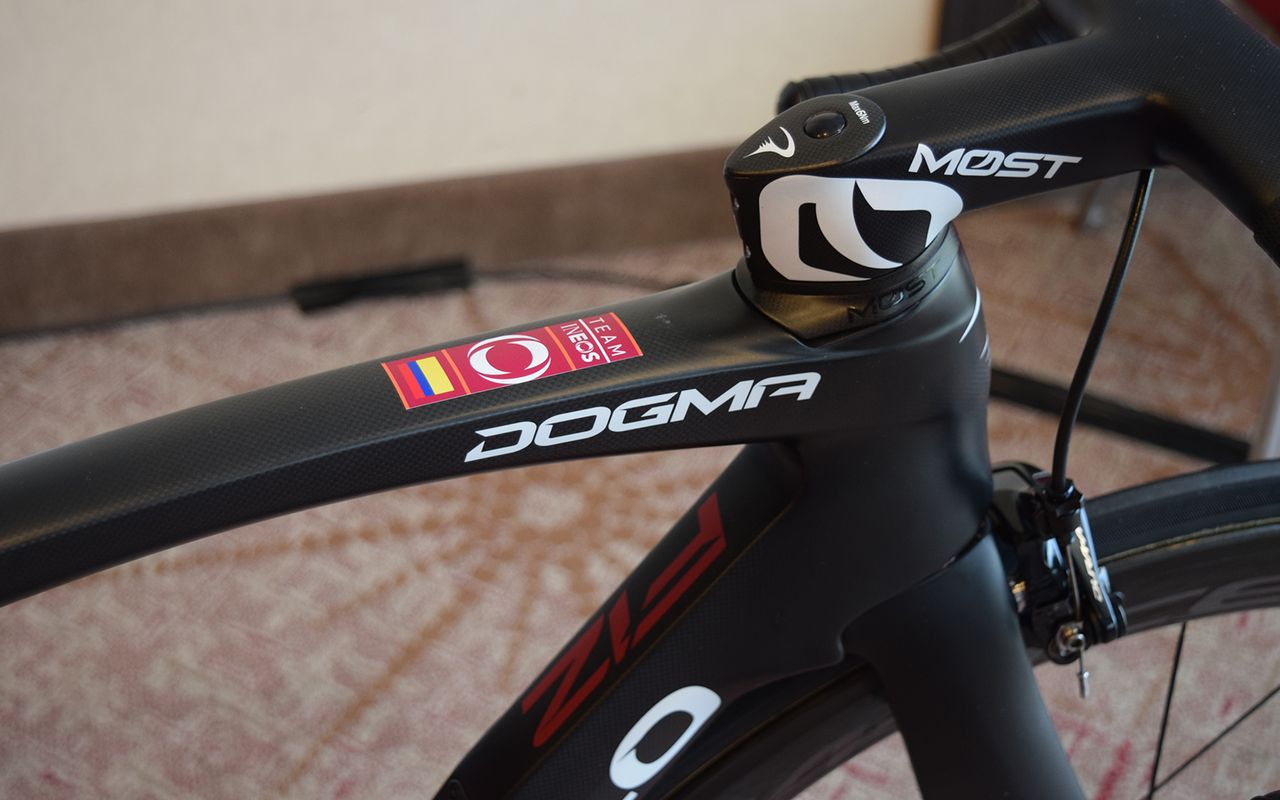

Bernal has the Colombian flag on his top tube(Image credit: Josh Evans)

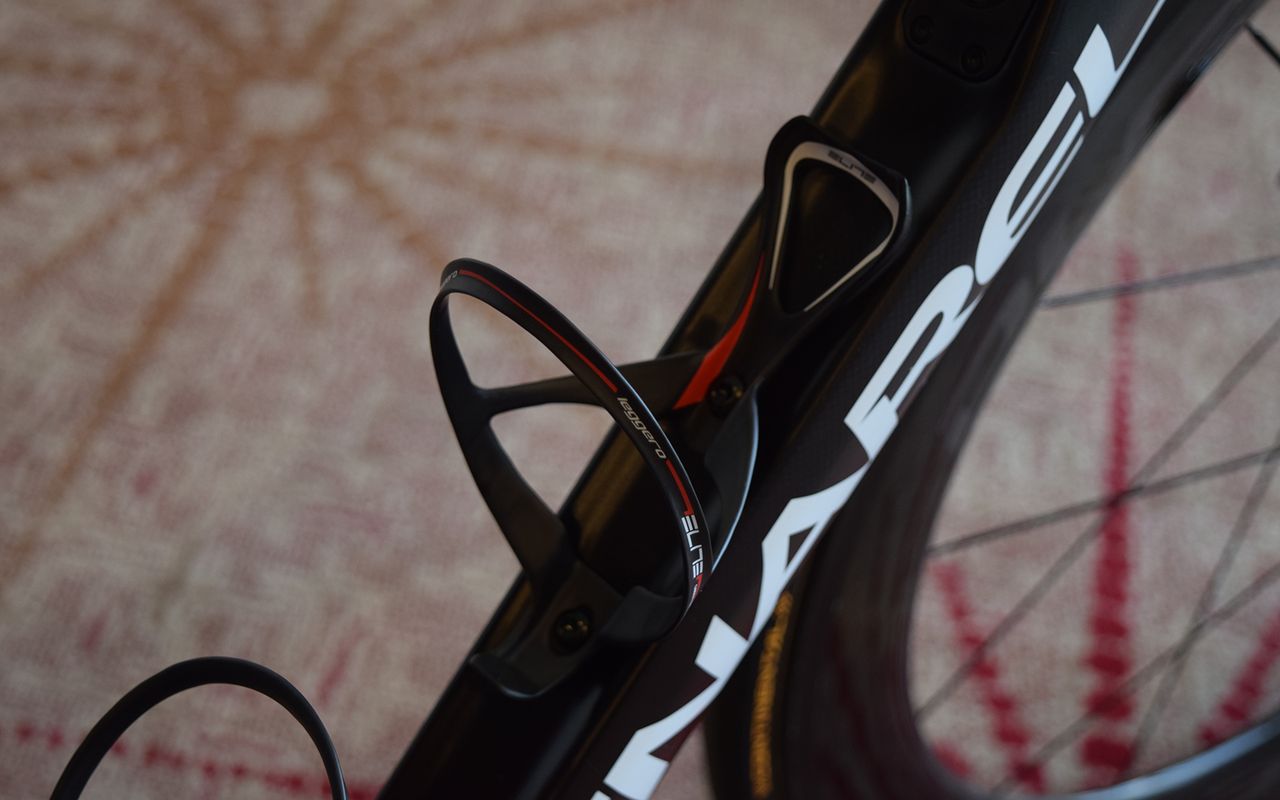

Team Ineos have switched to Elite Leggero bottle cages for the 2019 Tour de France instead of the usual Elite Vico Carbon cages they normally use(Image credit: Josh Evans)

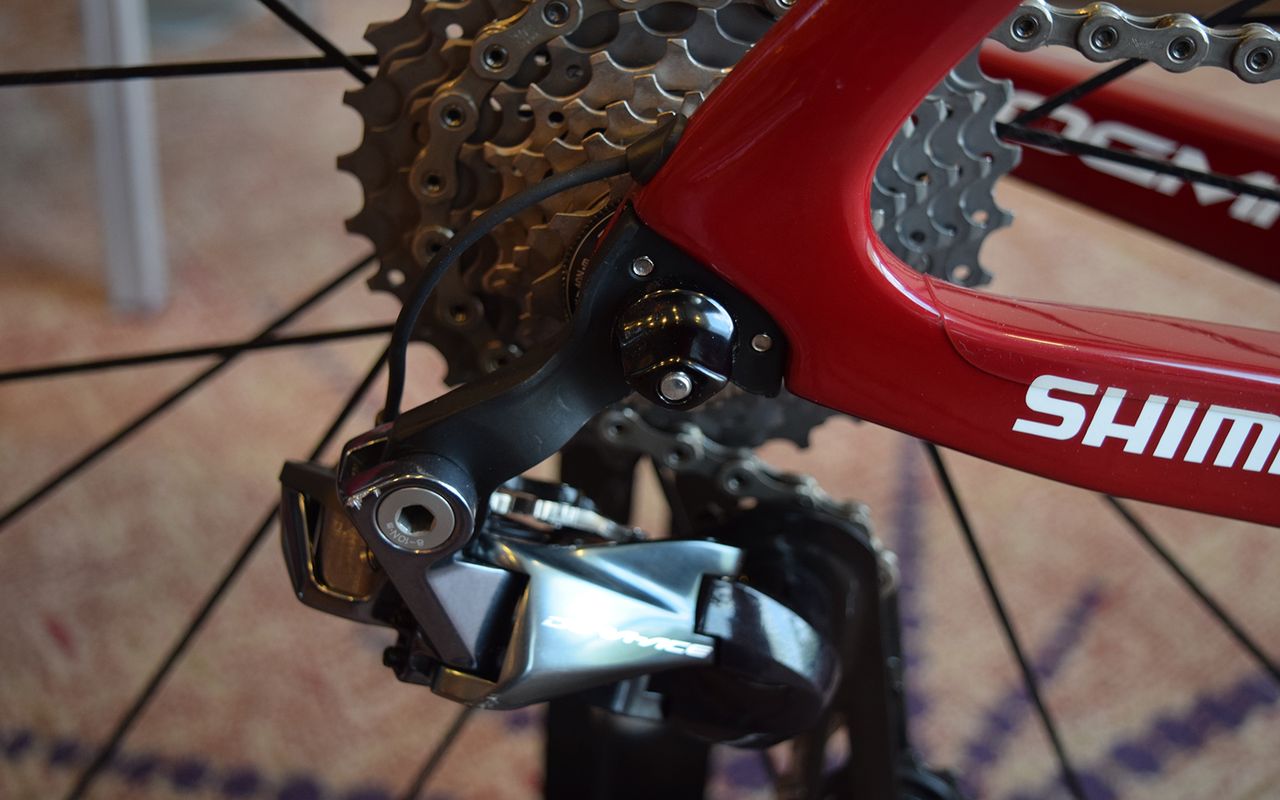

The rear derailleur features a proprietary, direct mount hanger for the new frame(Image credit: Josh Evans)

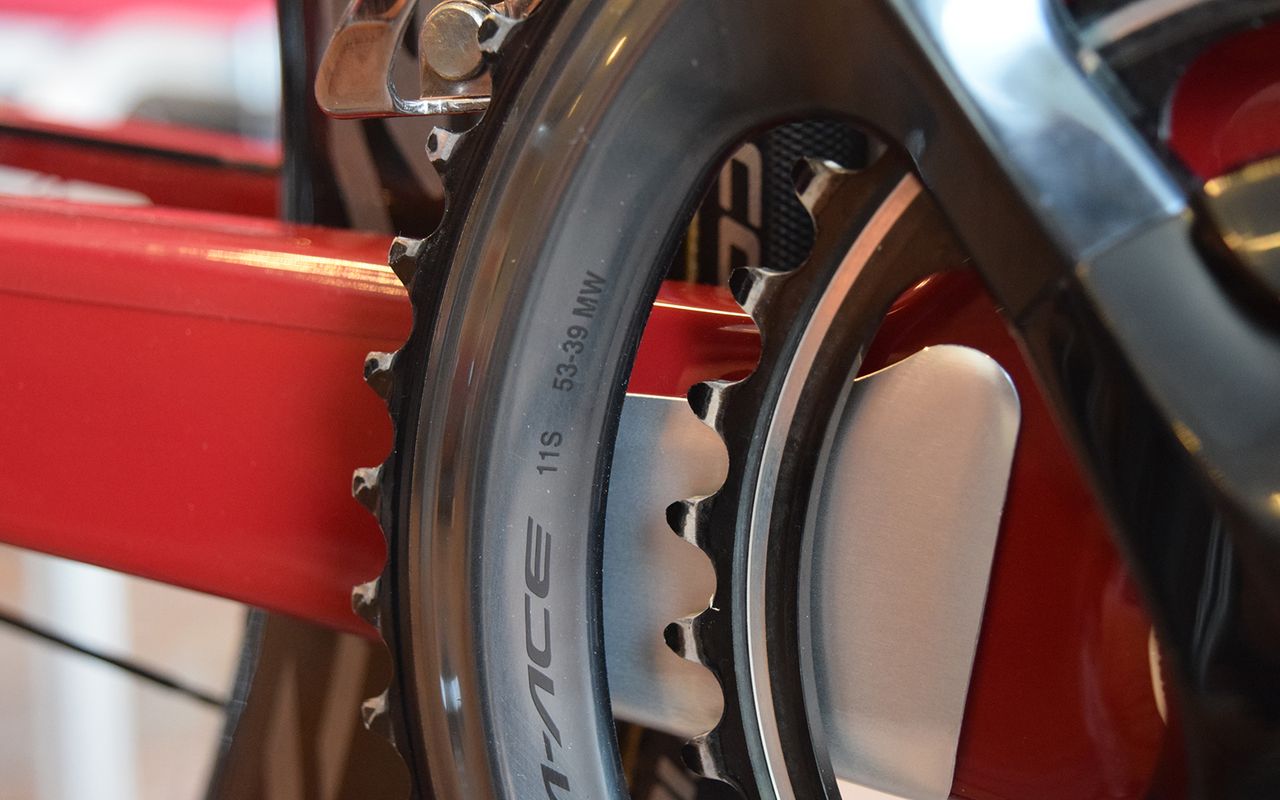

Bernal runs standard 53/39 chainrings(Image credit: Josh Evans)

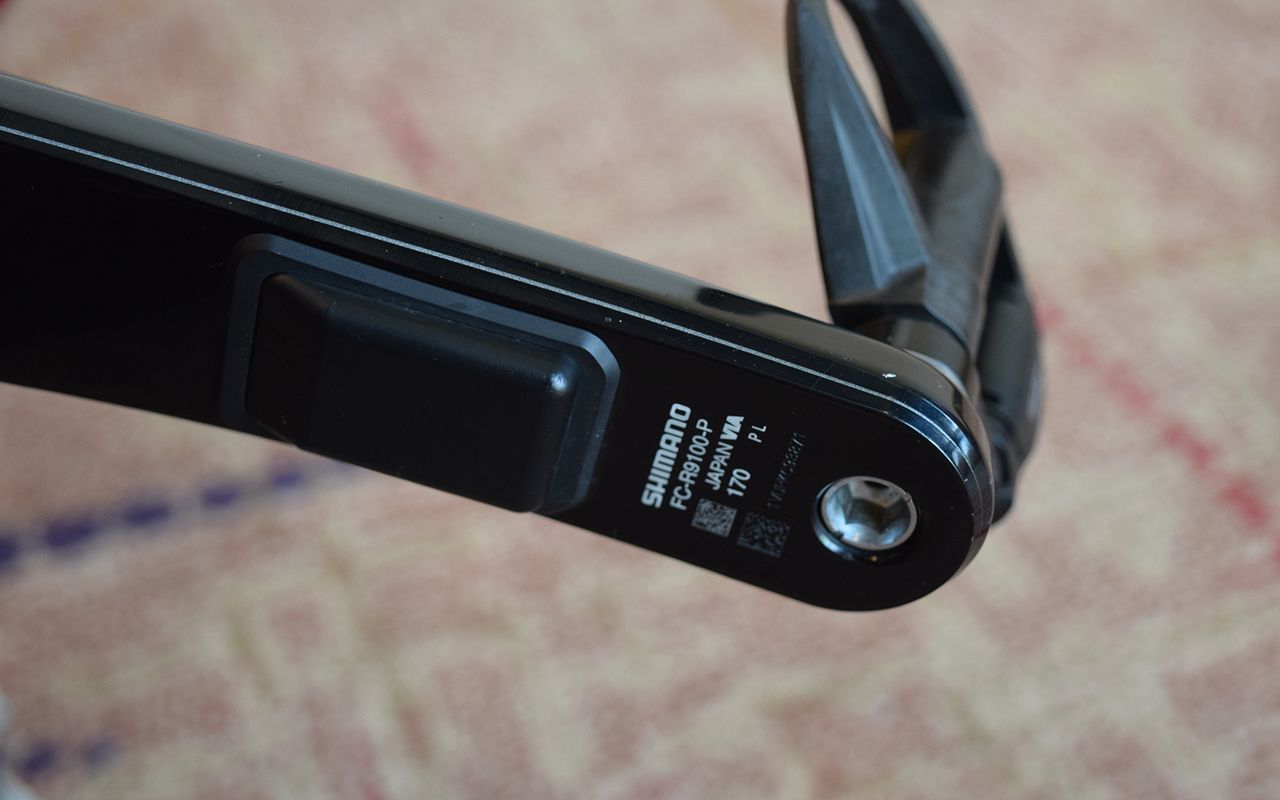

Bernal opts for 170mm cranks(Image credit: Josh Evans)

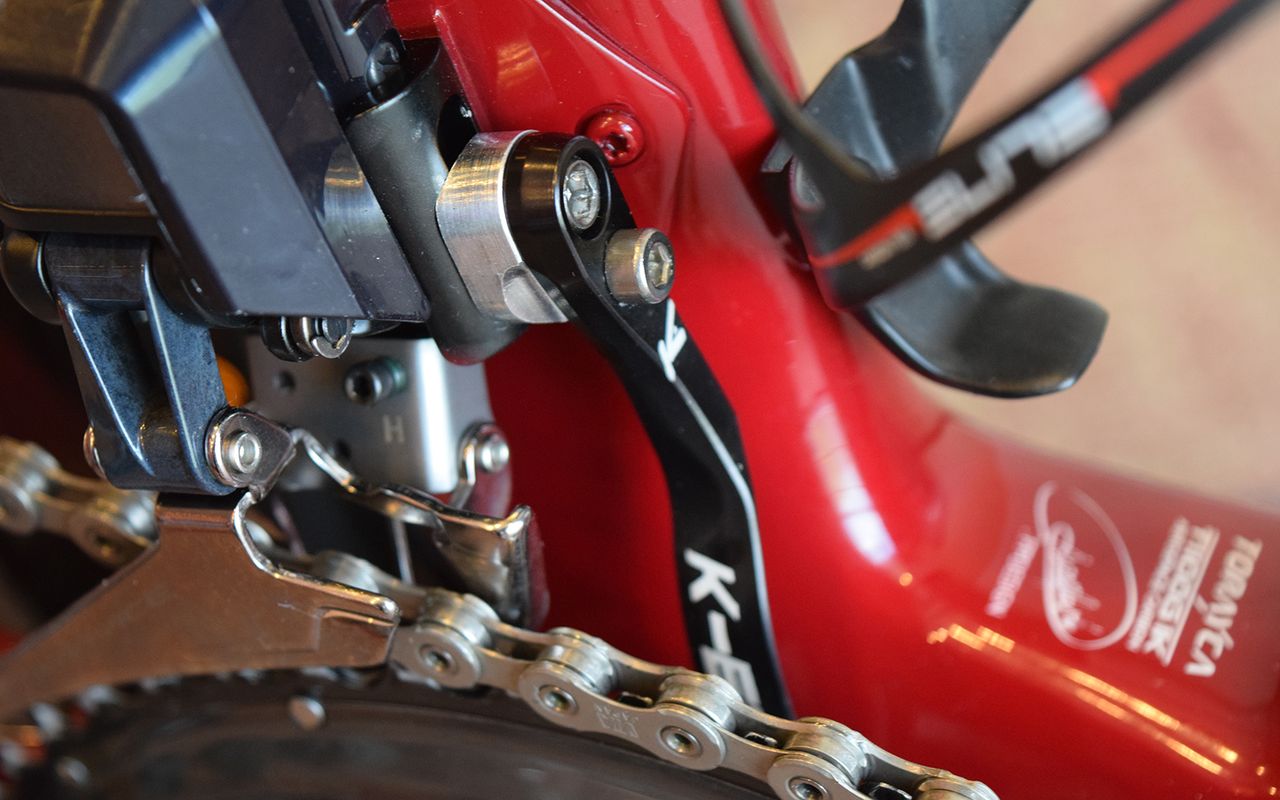

K-Edge provides the team with chain catchers(Image credit: Josh Evans)

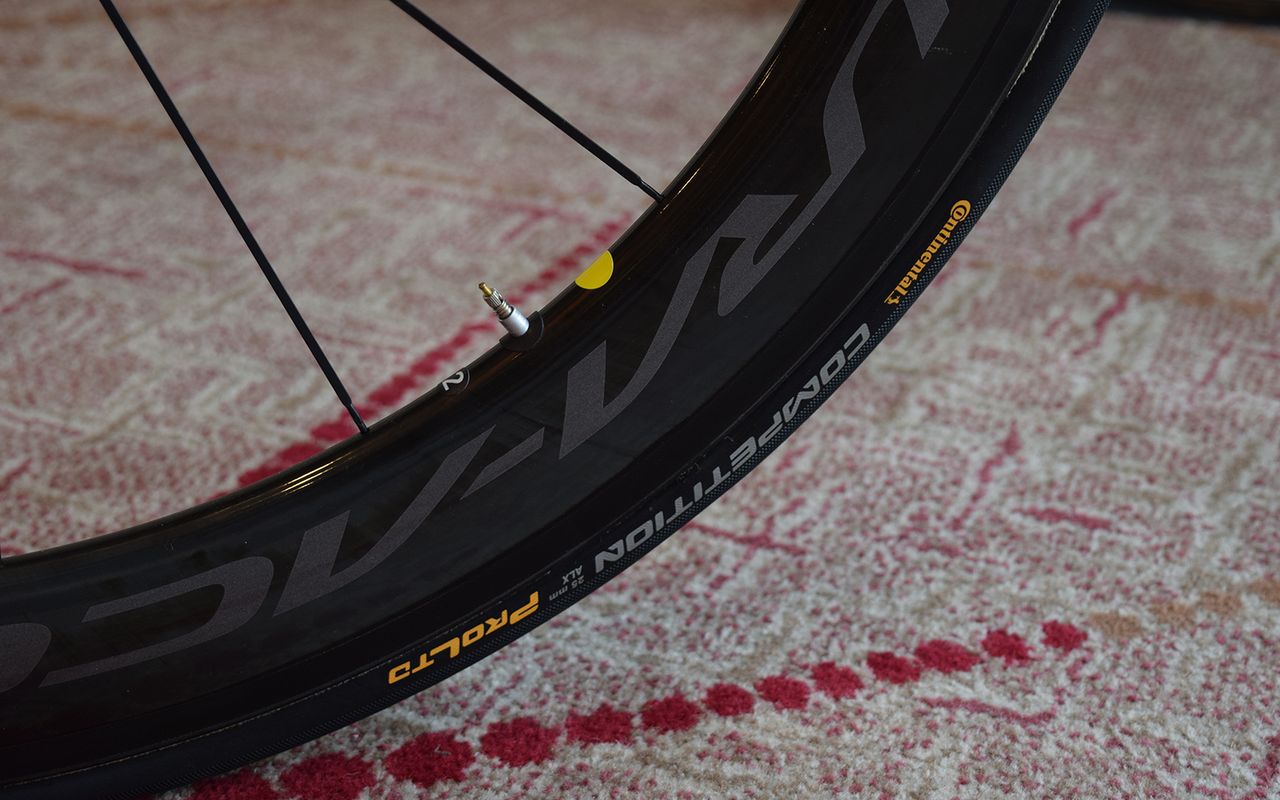

Shimano Dura-Ace (or Lightweight Meilenstein Obermayer) wheels are paired with Continental Competiton tyres(Image credit: Josh Evans)

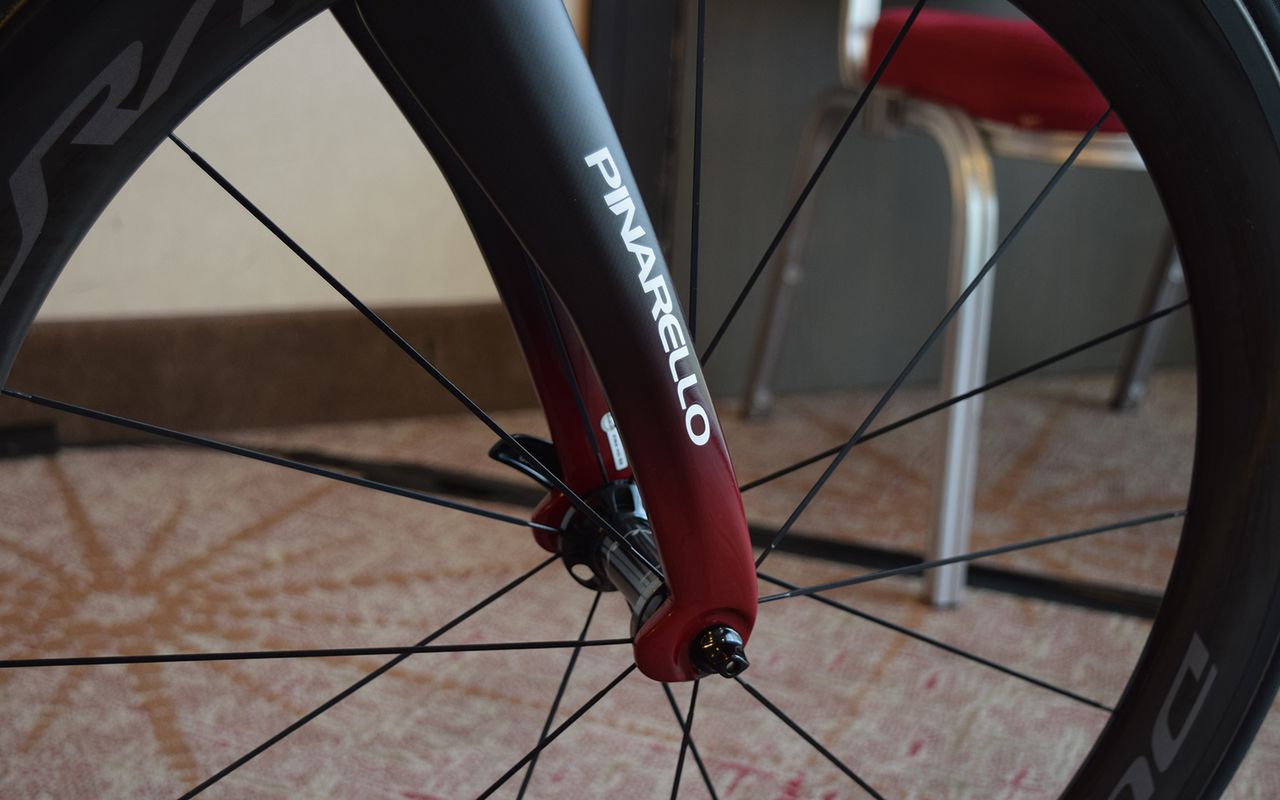

The Dogma F12 features tabs on the rear of the fork dropouts for claimed aero benefits(Image credit: Josh Evans)

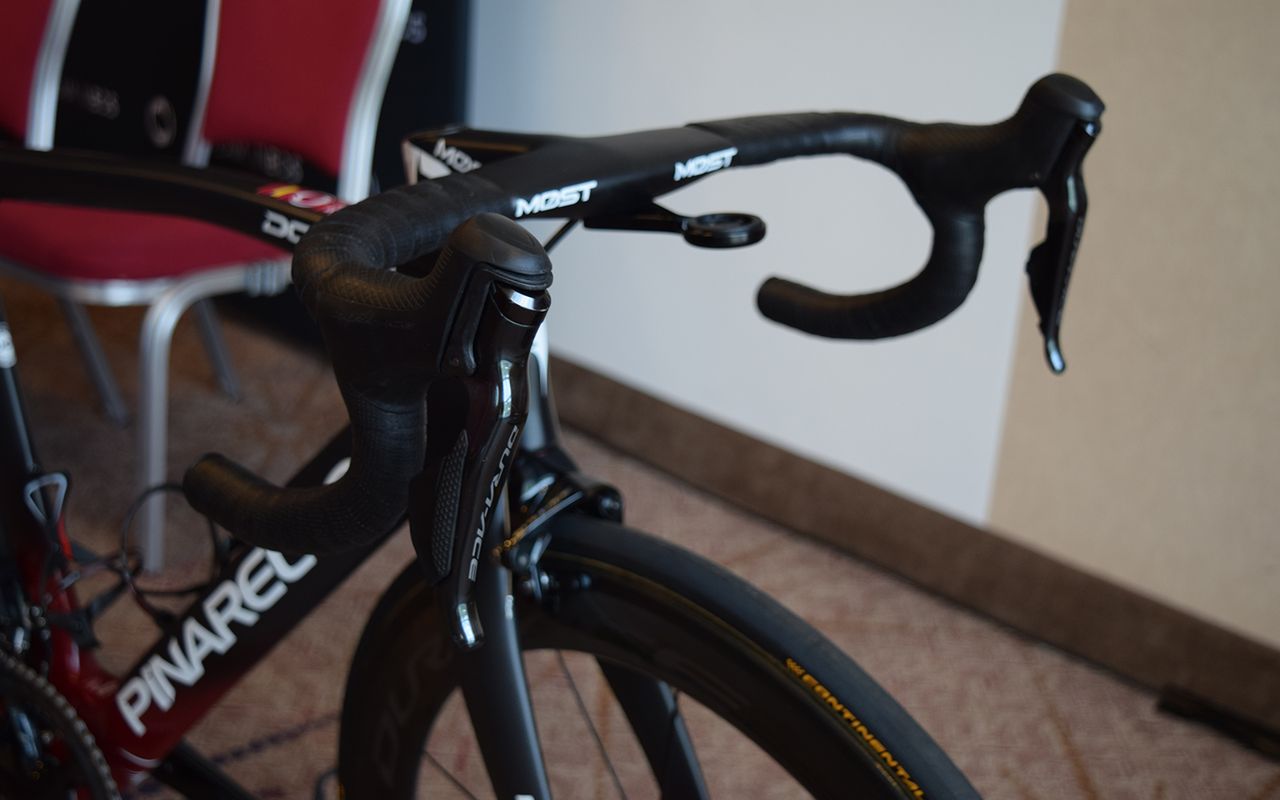

A look at the front end of Bernal's Pinarello(Image credit: Josh Evans)

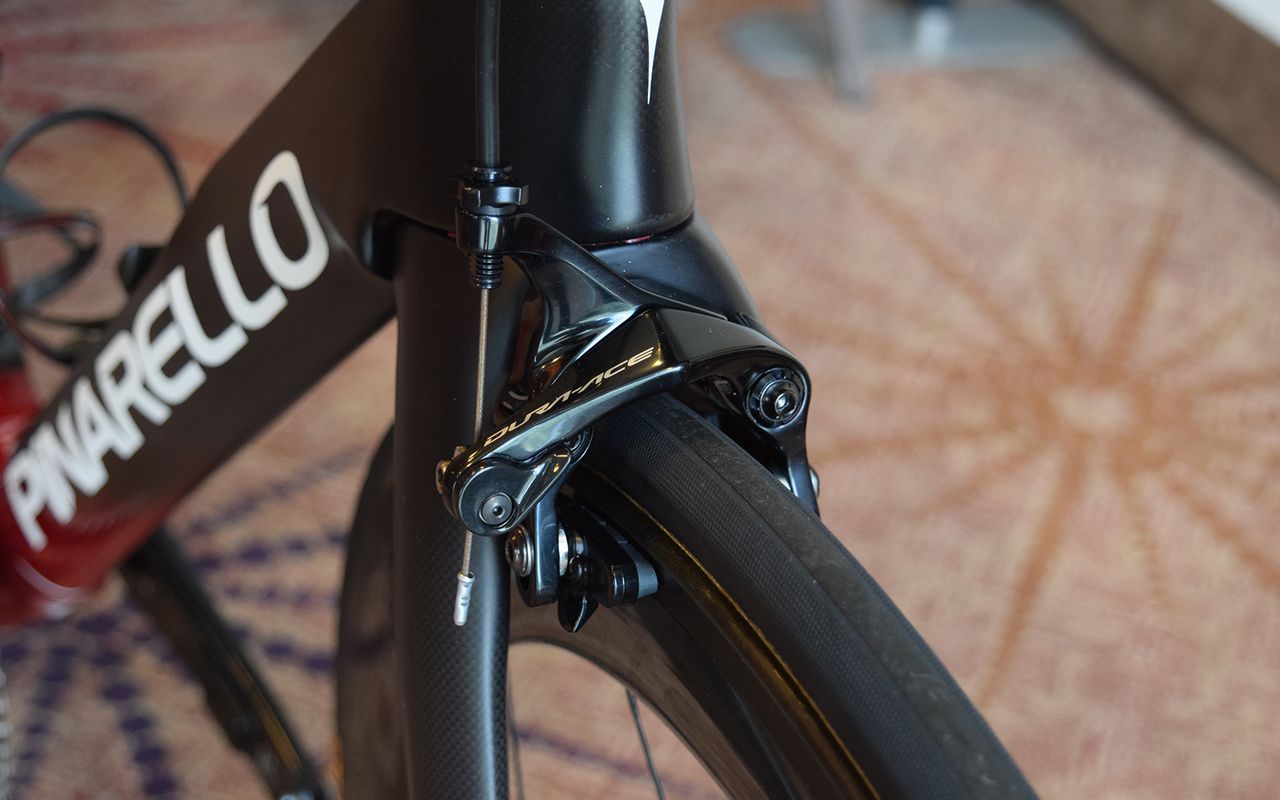

The front and rear Shimano Dura-Ace R9100 brakes are direct mount(Image credit: Josh Evans)

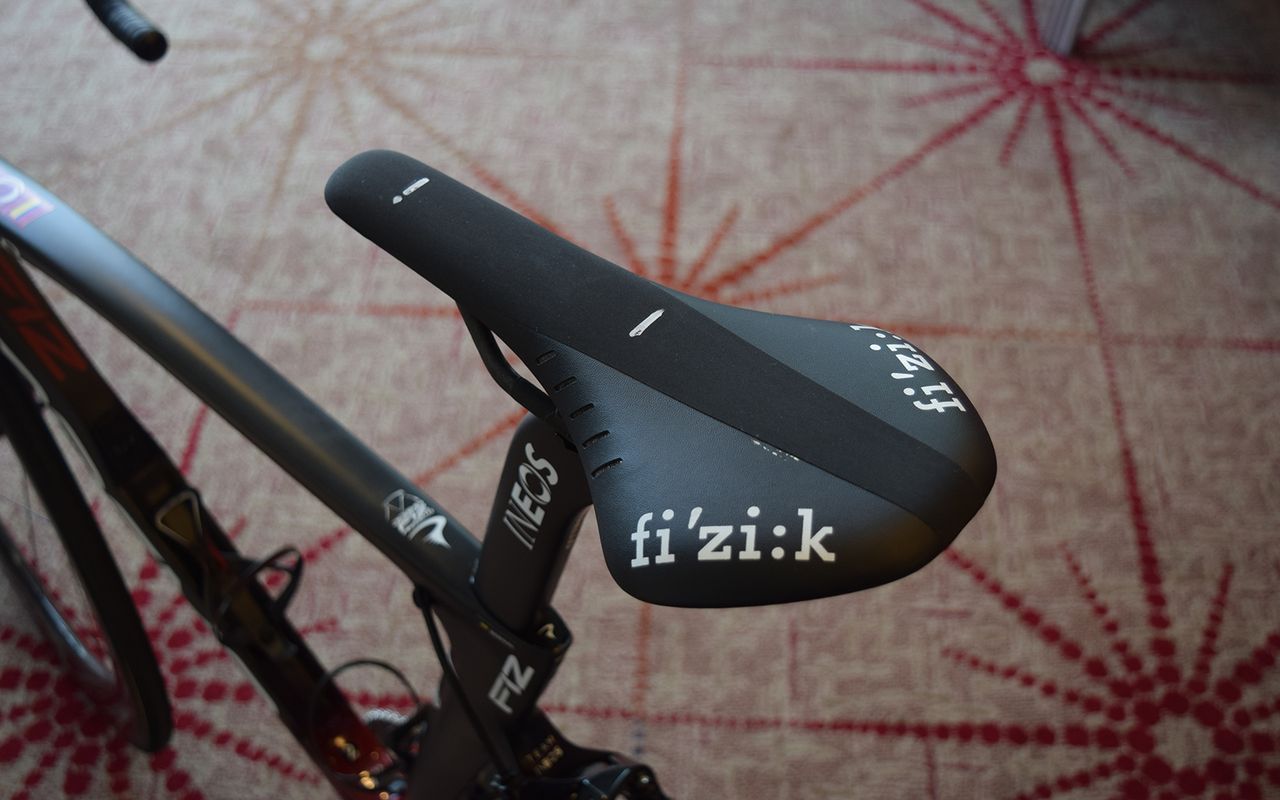

Team Ineos mechanics mark their rider's saddles to ensure setup is correct(Image credit: Josh Evans)

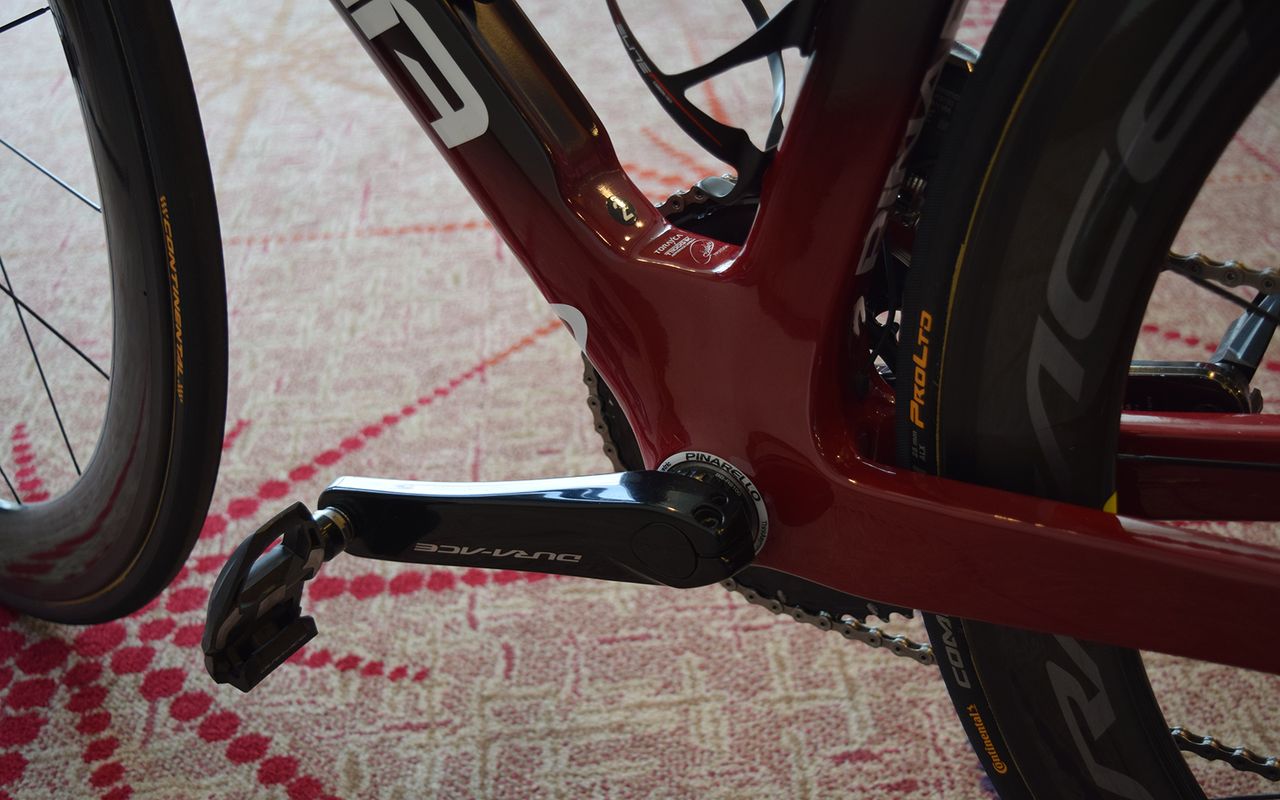

The oversized bottom bracket area should ensure great power transfer(Image credit: Josh Evans)

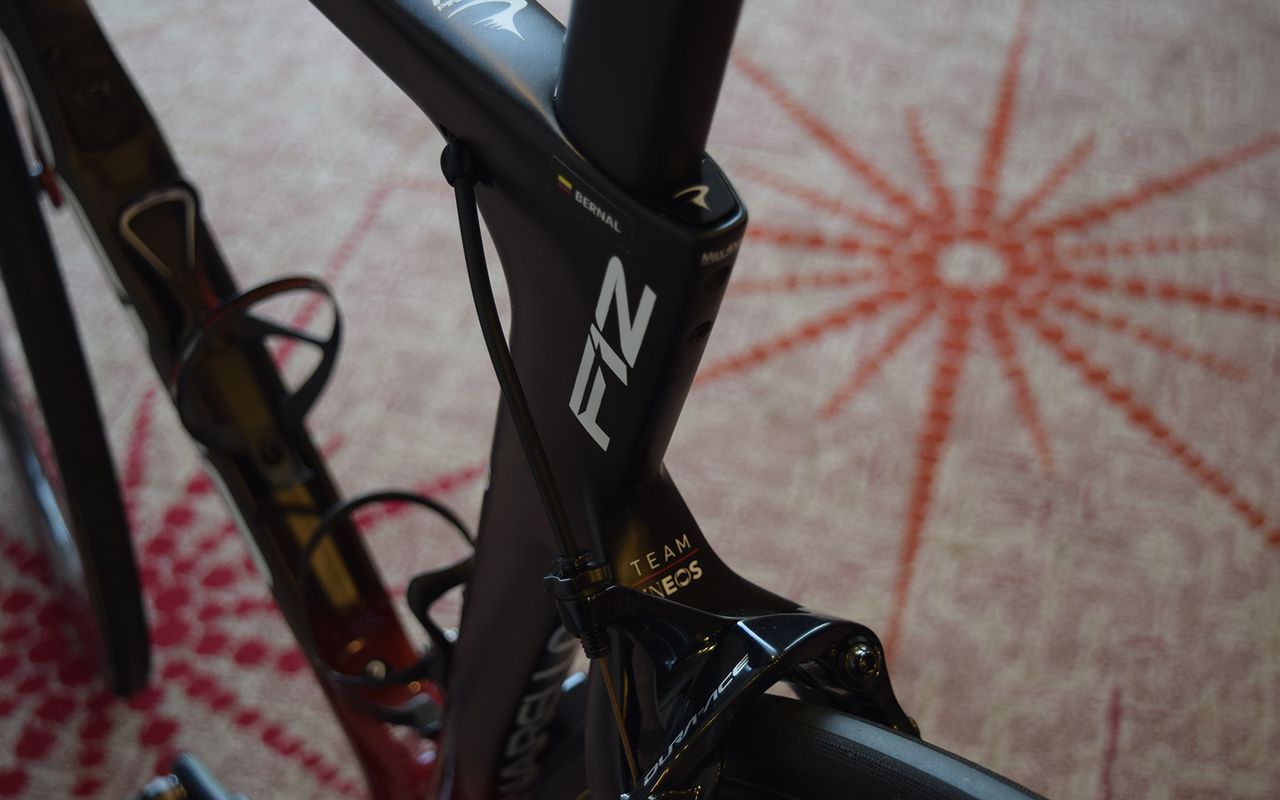

A look at the seat stay junction(Image credit: Josh Evans)

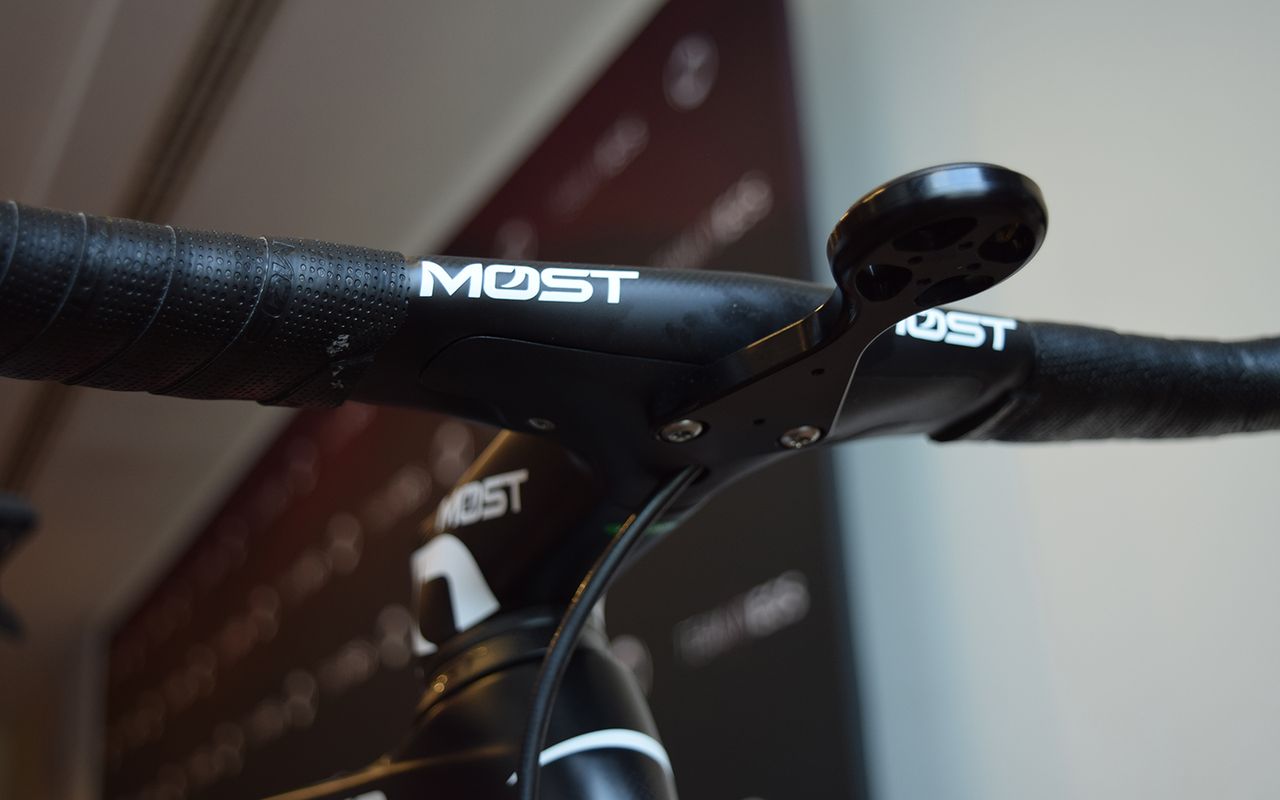

A proprietary out-front computer mount attaches to the underside of the cockpit(Image credit: Josh Evans)

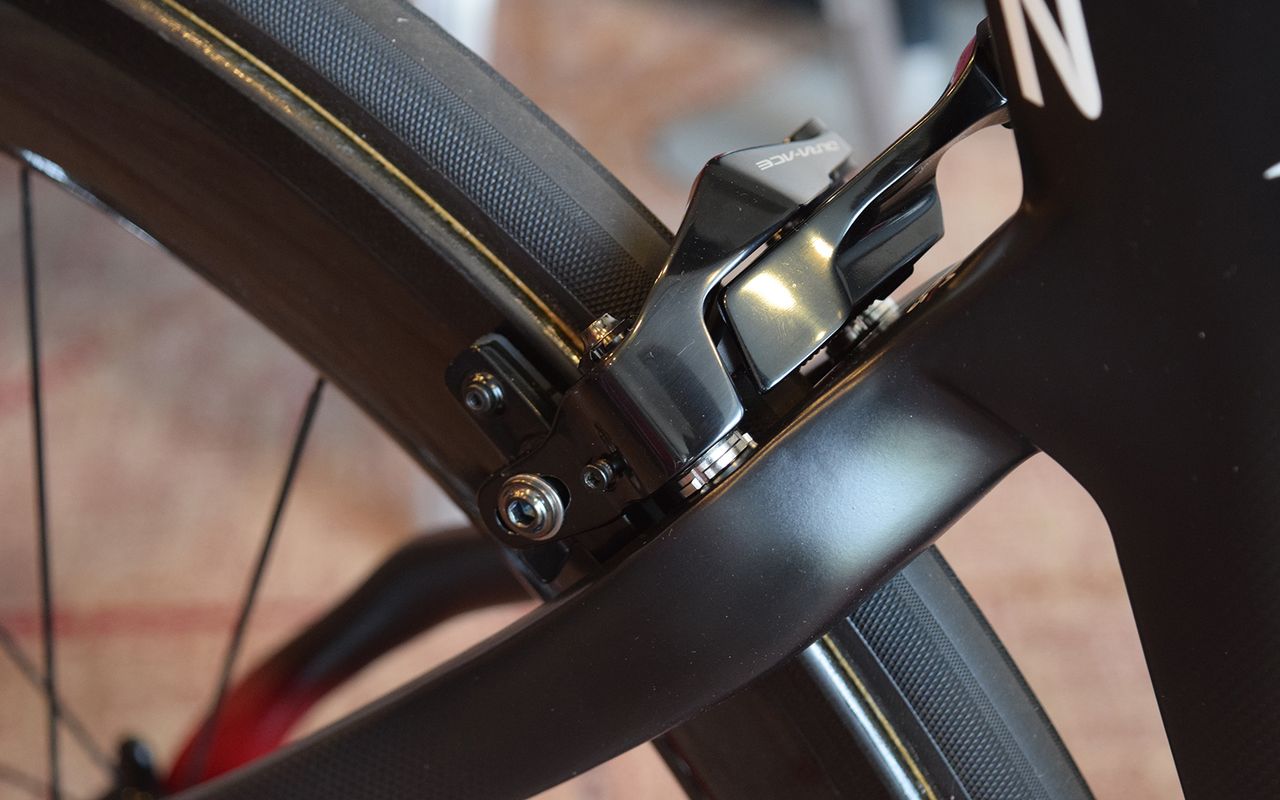

Here you can see the bolts of the direct mount brakes, which offer stiffer braking and a wider tyre clearance(Image credit: Josh Evans)
The British WorldTour squad – formerly Team Sky – rebranded earlier this year after being bought by the British billionaire Jim Ratcliffe, who is the chairman and chief executive of petrochemical giant, Ineos.
At the same time of the new team launch, long term bike partner Pinarello launched an all-new Pinarello Dogma F12 frameset, with Bernal’s victory the 15th Grand Tour title for the Italian bike brand.
While the frameset changed for 2019, Team Ineos stuck with the tried and tested Shimano Dura-Ace R9100 series drivetrain components. However, although the team also used Shimano’s wheels for the majority of the race, Team Ineos opted for Lightweight Meilenstein Obermayer wheels for the hillier and mountain stages of the race. Cyclingnews understands the wheel choice saved around 400g – a substantial amount on long climbs.
Pinarello's component company Most provides Team Ineos with their cockpit components and handlebar tape, with Bernal opting for a carbon, integrated handlebar and stem system.
For the final stage of the race, Pinarello presented Bernal with an all-yellow version of the Dogma F12, which the Colombian rode into Paris. Peter Sagan (Bora-Hansgrohe) and Romain Bardet (AG2R La Mondiale), who won the green and polka-dot jerseys, respectively, also had custom bikes for the final stage.
Click through the gallery above for a closer look at Egan Bernal’s Pinarello Dogma F12.
Get The Leadout Newsletter
The latest race content, interviews, features, reviews and expert buying guides, direct to your inbox!
Egan Bernal’s Pinarello Dogma F12 full bike specifications
Frameset: Pinarello Dogma F12
Front brake: Shimano Dura-Ace R9100, direct mount Rear brake: Shimano Dura-Ace R9100, direct mount Brake/shift levers: Shimano Dura-Ace R9150 Front derailleur: Shimano Dura-Ace R9150 Rear derailleur: Shimano Dura-Ace R9150 Cassette: Shimano Dura-Ace R9100, 11-30 Chain: Shimano Dura-Ace R9100 Crankset: Shimano Dura-Ace R9100-P, 170mm cranks, 53/39 chainrings
