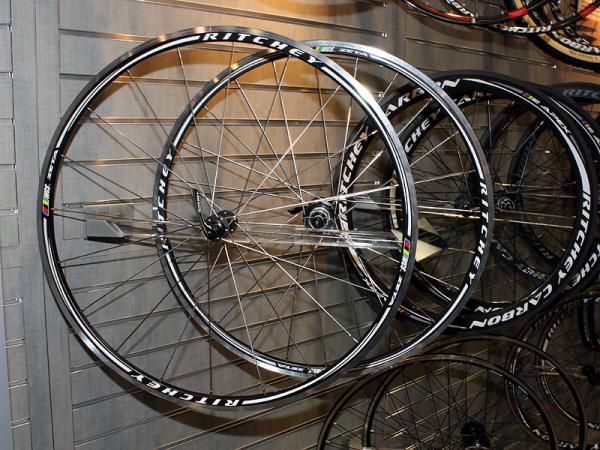

The new Zeta road wheels will feature welded and machined aluminum rims alloyed with vanadium and a shallow box-section profile to lend more comfort on rough roads.(Image credit: Emily Wren/www.emilywren.com)

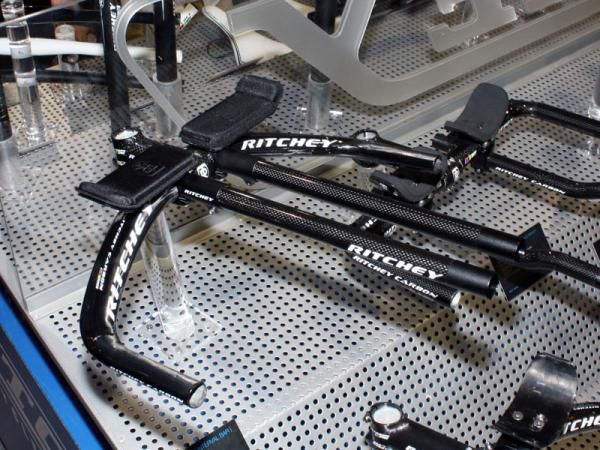

Ritchey's redesigned Hammerhead integrated aero bar features new extension clamps that sit in-line with the base bar.(Image credit: Emily Wren/www.emilywren.com)

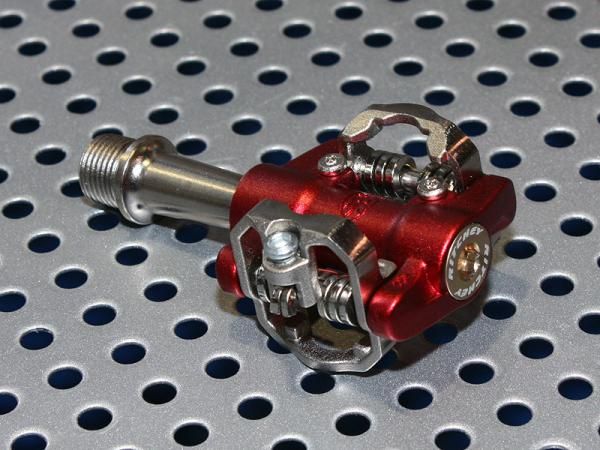

Ritchey says its new Pro V5 clipless pedals offer more durable bearings than its predecessor yet still boast an impressive 230g weight - not to mention a reasonable US$135 price tag.(Image credit: Emily Wren/www.emilywren.com)

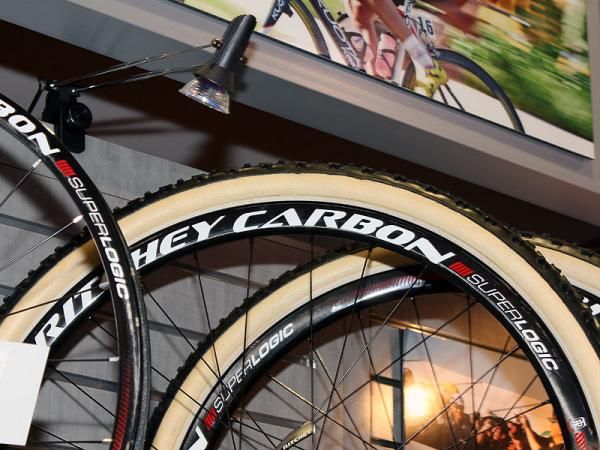

Tubular mountain bike wheels and tires? Yessirree, it's a trend that's been growing for some time now and Ritchey offers its top-end Superlogic carbon wheels in a glue-on variety to suit.(Image credit: Emily Wren/www.emilywren.com)

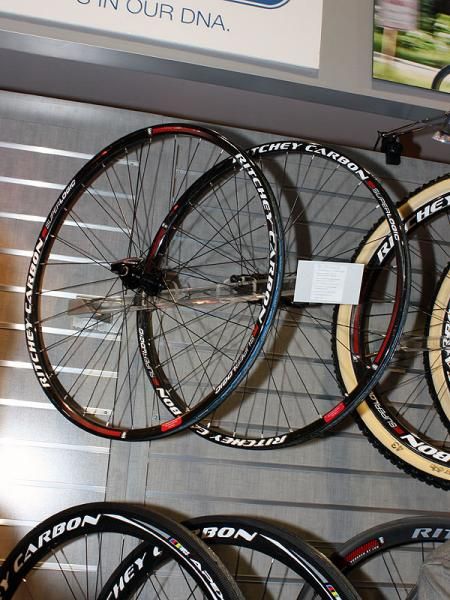

More conventional carbon Superlogic mountain bike clinchers are also available, complete with ultralight unidirectional carbon rim and hubs built by DT Swiss.(Image credit: Emily Wren/www.emilywren.com)

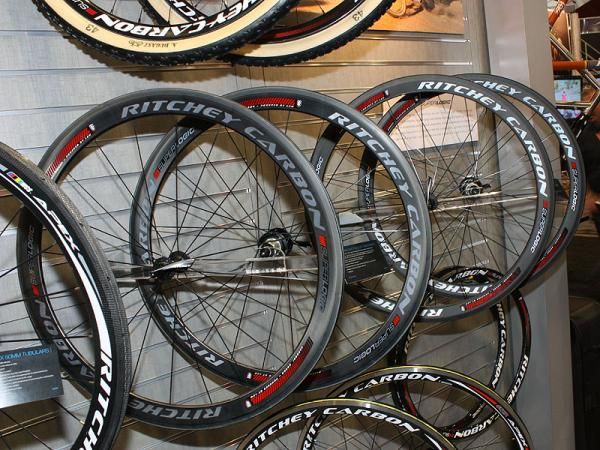

Ritchey will offer a comprehensive range of carbon wheelsets for 2010, including these road-going Superlogic models using carbon-boron rims developed by Paul Lew.(Image credit: Emily Wren/www.emilywren.com)

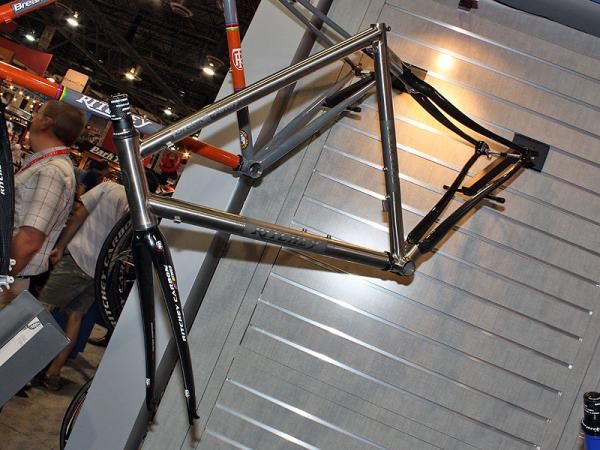

The popular titanium Breakaway gets a bigger down tube and a swaged seat tube for 2010.(Image credit: Emily Wren/www.emilywren.com)

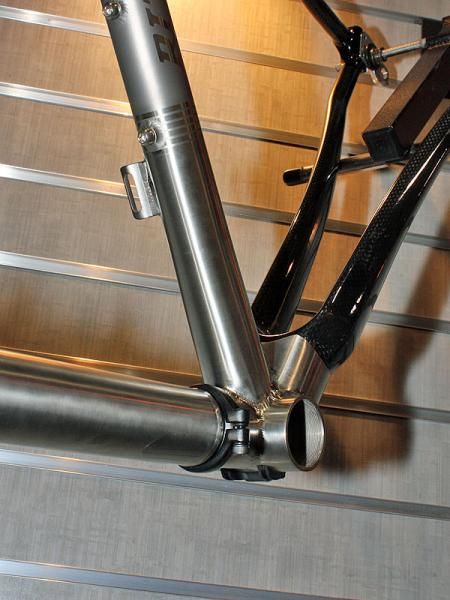

The bigger main triangle promises more stiffness but also more durability.(Image credit: Emily Wren/www.emilywren.com)

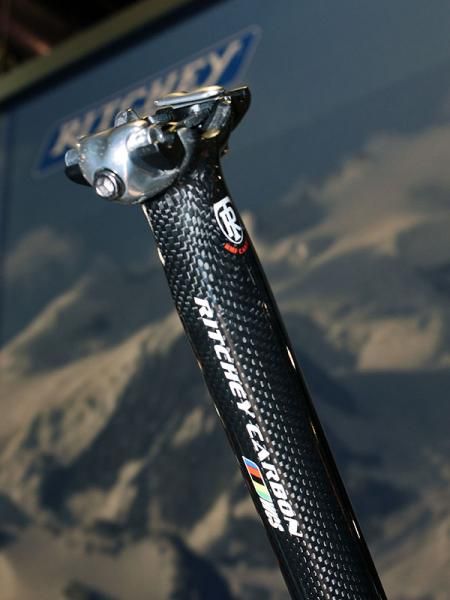

New for 2010 is a carbon version of Ritchey's zero-offset one-bolt seatpost design.(Image credit: Emily Wren/www.emilywren.com)

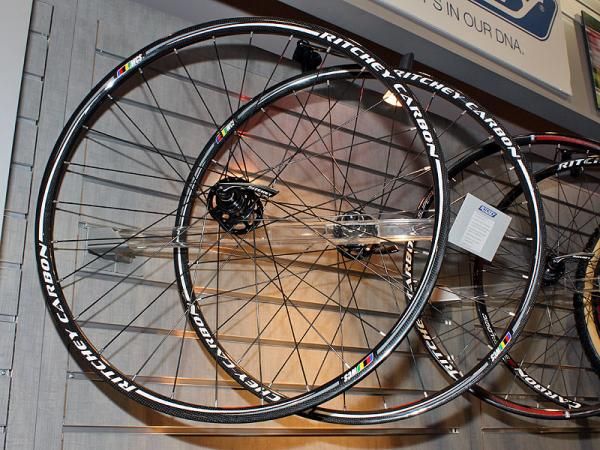

WCS-level carbon fiber mountain bike wheels feature more conventional carbon construction with a woven finish.(Image credit: Emily Wren/www.emilywren.com)

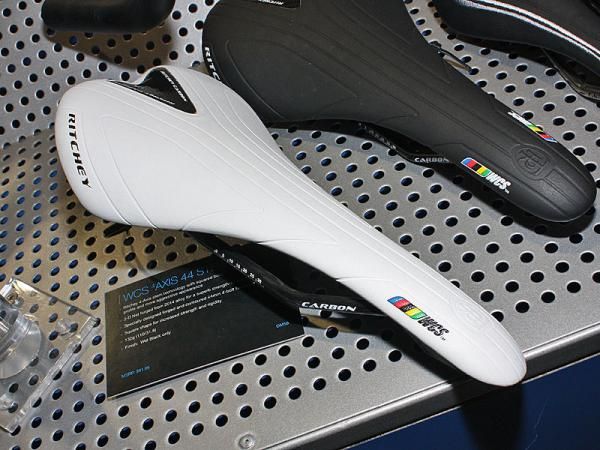

The WCS CF Streem saddle reportedly weighs just 142g thanks in part to carbon fiber rails.(Image credit: Emily Wren/www.emilywren.com)

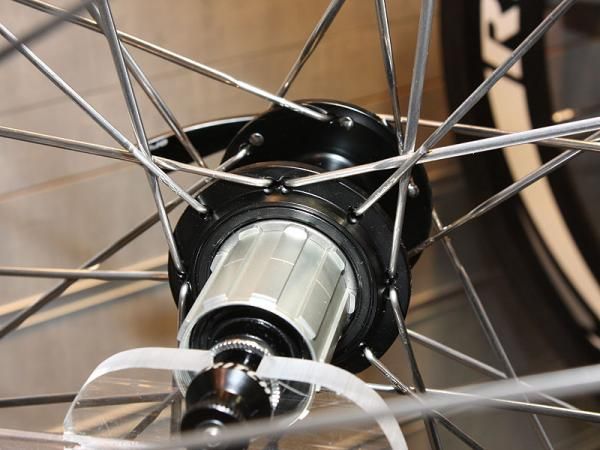

Crow's foot lacing patterns will used on many of Ritchey's rear wheels for more lateral stiffness.(Image credit: Emily Wren/www.emilywren.com)
Ritchey is concentrating heavily on its wheel range with over half a dozen new sets for 2010, including three carbon fiber mountain bike models – two clincher and one tubular.
The top-end Superlogic mountain bike clinchers feature 25mm-wide, 20mm-deep unidirectional carbon rims laced to DT Swiss-made hubs with Center Lock rotor interfaces (six-bolt rotors can be used with adapters). Though the carbon rims obviously reduce weight – claimed figures are as low as 1,296g for the pair – their key benefit is the ability to use a wider profile without adding appreciable mass, thus affording better rim rigidity and improved tire support.
Ritchey will offer the Superlogic in both 9mm quick-release and 15mm thru-axle front fitments at a retail cost of about US$2,250 for the pair. Ultra-weight weenies and die-hard cross-country racers will also have the option of a tubular version, which drops about another 100g (more if you account for the lighter tires) yet are even slightly less expensive at about US$1,950.
Also on tap is a slightly more conventional carbon MTB clincher set with woven carbon rims. In either case, all of the rims will use true monocoque construction with no central mold seam. Projected availability is around January 2010.
The Superlogic range will include carbon road wheels as well – again in both tubular and clincher forom – with both models using rims designed by Paul Lew and enhanced with boron fiber for additional compression stiffness. Hubs are again based on DT Swiss's 240s model but rear wheels are further enhanced with a rarely-seen crow's foot lacing pattern, which interspersed radial and crossed spokes for greater lateral rigidity.
Claimed weights are as low as 1,171g for a pair of 20/24h tubulars with the all-carbon clinchers creeping up to about 1,410. Suggested retail price will range between US$2,800 and US$3,000 for the pair.
One of Ritchey's most intriguing road wheelsets for 2010, though, also happens to be one of its cheapest. The new Zeta road wheels use a relatively shallow 24mm-deep aluminum rim alloyed with vanadium for a competitively lightweight 1,545g showing at the scale, a more comfortable ride on rough roads, and a reasonable US$710 retail cost. German-made cartridge bearings and Belgian Sapim CX and CX-Ray stainless steel spokes promise good longevity, too.
Get The Leadout Newsletter
The latest race content, interviews, features, reviews and expert buying guides, direct to your inbox!
Component highlights include new 'Wet White' finishes for a number of top-end selections, a new carbon fiber version of Ritchey's popular zero-offset One-Bolt seatpost, redesigned Hammerhead integrated aero bars, a 142g WCS CF Streem road saddle with carbon rails, and a new Pro V5 mountain bike clipless pedal with reportedly more durable bearings than the previous iteration.
Even Ritchey's titanium Breakaway road frame has been updated for 2010 with a bigger down tube and newly swaged seat tube for additional drivetrain stiffness. Retail cost remains around US$3,000 for the frame, fork and headset – a hefty sum but one that could quickly be recouped in saved airline fees depending on how much you travel.
