Plus new carbon 29er hardtail and cyclo-cross bikes
Image 1 of 15

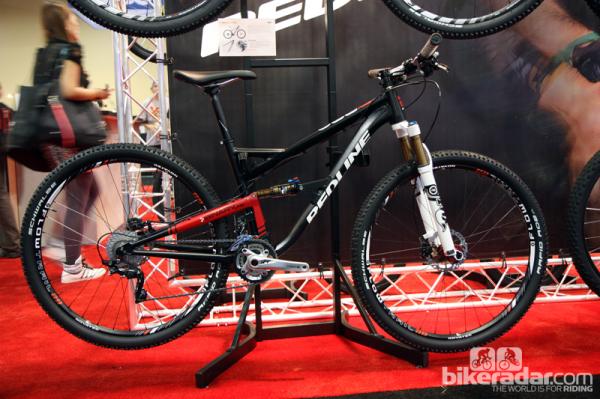

Redline showed off its first dual-suspension mountain bike, the D880, at this year's Interbike show.(Image credit: Jonny Irick)
Redline's Conquest 24 is an appealing option for junior-sized 'cross racers.(Image credit: Jonny Irick)
Redline says the RA1 is the company's first road bike that was wholly designed in-house.(Image credit: Jonny Irick)
Tucking the rear brake inside the rear triangle on Redline's Metro Sport leaves enough room for double eyelets.(Image credit: Jonny Irick)
Redline's Metro Sport is essentially just a repackaged version of the company's older Conquest Classic model. Slapping the 'urban' label on to the bike, however, has apparently done lots of good for sales.(Image credit: Jonny Irick)
New for Redline are 142x12mm thru-axle dropouts on some 29er aluminum hardtails.(Image credit: Jonny Irick)
Redline has also tweaked its aluminum 29er hardtails for 2013.(Image credit: Jonny Irick)
Press-fit cups, and extra-wide bottom bracket shell, and internal cable routing for the Redline D680 carbon 29er hardtail.(Image credit: Jonny Irick)
The D680 is Redline's top-end 29er carbon hardtail with a retail price of US$5,000.(Image credit: Jonny Irick)

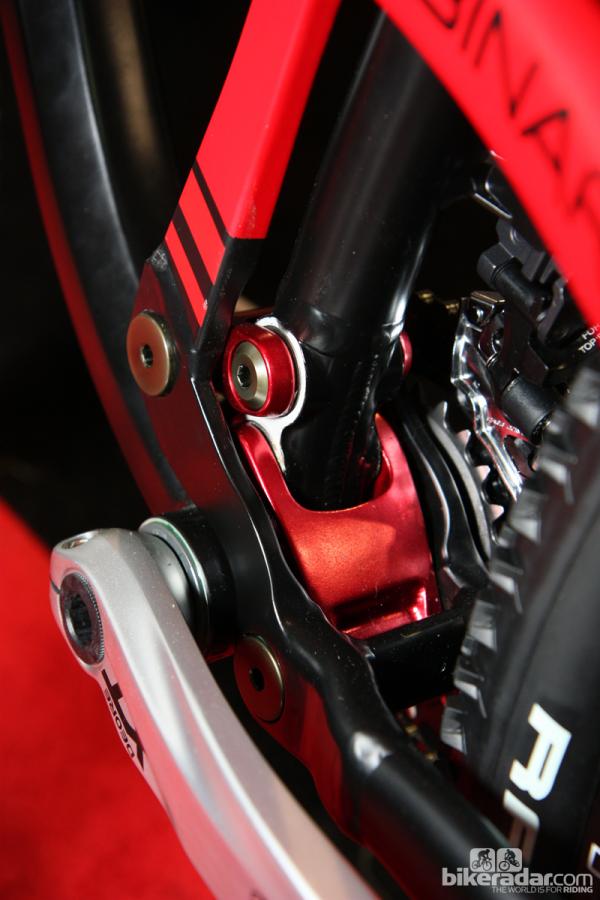

Redline's Binary Link rear suspension design supposedly provides the proven ride characteristics of a good single-pivot design but with the stiffness advantages of a full enclosed rear triangle.(Image credit: Jonny Irick)
Redline has built the new D880 full-suspension 29er with a new short dual-link design called Binary Link.(Image credit: Jonny Irick)
Redline's carbon fiber, disc-compatible Conquest Team is thankfully ready and available in plenty of time for 'cross season.(Image credit: Jonny Irick)
Linear-pull brakes and S-bend stays for Redline's pint-sized Conquest 24.(Image credit: Jonny Irick)
The new Redline RA1 uses a new carbon-bladed fork from Kinesis.(Image credit: Jonny Irick)
Redline is a company best known for its cyclo-cross models but 2013 will see attention paid to two all-new 29er mountain bikes: an aluminum dual-suspension chassis with a novel rear end designed in-house and a full carbon frame upgrade to last year's D680 aluminum backbone.
The new D880 full-suspension bike features 110mm of rear wheel travel achieved through Redline's own Binary Link design. According to Redline, the twin short links – both of which are located very close together just about the bottom bracket shell – mimic the proven performance of a good single-pivot design but with the increased stiffness of a fully enclosed rear triangle that doesn't require pivoting dropouts.
Additional features include 142x12mm thru-axle rear dropouts, a tapered head tube, a direct mount front derailleur, Kashima-coated Fox suspension components, and a competent Shimano XT/SLX component mix for US$3,500. Target weight for the complete production bike is around 12-12.2kg (26.5-27lb) and retail price will be US$3,500 when the bike becomes available next spring.
Meanwhile, the current D680 29er hardtail gets a major upgrade for 2013 with an all-carbon frame that drops a big chunk of weight from the old alloy chassis and also supposedly improves the stiffness and ride quality. Key features include an extra-wide bottom bracket shell with press-fit bearing cups, a tapered front end, 142x12mm thru-axle rear dropouts, a dropped driveside chain stay to reduce chain slap, and internal derailleur cable routing.
Suggested retail price for the D680 is US$5,000 complete with a SRAM X9/X0 2x10 transmission, Ritchey Vantage II alloy wheels, a Fox 32 Float 29 FIT CTD Adjust 100mm-travel fork, and Ritchey cockpit components.
Redline has even added a proper road bike to its range with the new RA1 – supposedly the first Redline road bike completely designed in-house – the new disc-compatible Conquest Team flagship is ready for purchase in stores, and for up and coming CXers there's the Conquest 24 with 24" wheels to cater to the junior crowd.
